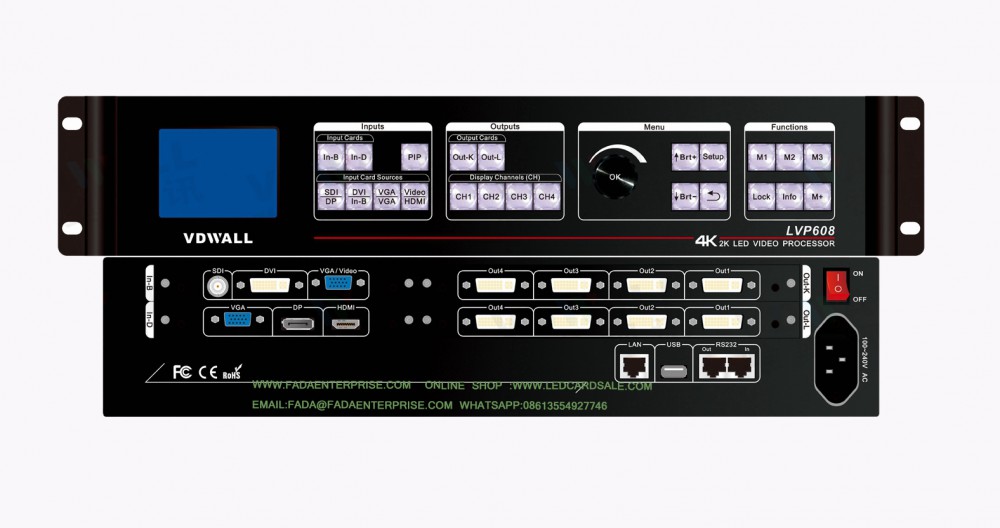

LVP608

Details

1. Input ports: 1 x Video、2 x VGA、1 x DVI、1 x SDI、1 x DP1.2、1 x HDMI1.4

2. 8x DVI outputs, each port’s maximal output resolution is 1920 x 1080_60Hz

3. 4K2K ultra HD video processing, single port HDMI or DP can receive 4K2K ultra HD video signal, through internal

sync processing of frequency doubling, it divided into 4 images to output, each image’s resolution is

1920 x 1080_60, pixel-to-pixel sync output to 4K2K LED screen. It can also capture a part of a signal and scale

it to be displayed on a LED screen of any size

4. Two 4K2K signals can be input at the same time, supports DP1.2 and HDMI1.4 signals, and it can realize

PIP / PBP dual display or seamless switching

5. Mixed video processing and switching :windowing and overlapping of Ultra HD(4K2K), HD(1080P), and

SD videos; Seamless switching, fade-in / fade-out

6. Input signals can be scaled in 2 times to be fully and sync displayed on a 8K2K LED screen, through

internal sync processing of frequency doubling, it divided into 8 images to output, each image’s resolution

is 1920 x 1080_60

7. Sync monitoring can use a 1080P display to monitor 4K2K input signal

8. Roaming and windowed picture on 4K2K ultra HD background picture

9. State-of-the-art motion-adaptive de-interlace processing technology; no more trailing or jagged pictures

10. CrossPoint high-bandwidth and high data-rate transmission technology

11. Seamless or fade-in/fade-out switching effect between any input signals

12. Image or text overlay supported, AIAO(Any In Any Out)allows for cropping, scaling and positioning of any size

input to any size output

13. Convenient operations, set 4K2K pixel-to-pixel sync display on LED screen by pressing a button, select

preset modes by pressing a button

14. Convenient panel / Rs232 / USB / LAN operation

● Feature one : 8K2K mosaic display, maximally supports 16 millions pixels' LED screen, three roaming and windowed pictures

● Feature two : 4K2K single input port, 4K2K pixel-to-pixel sync display

● Feature three : Fade-in / Fade-out

● Feature four : Seamless switching

small pitch,ultra resolution LED screen,video conference,TV studio center,rental show,exhibition and etc.

● LVP608 connection diagram

Inputs
Number/Type	1×Video 2×VGA (RGBHV) 1×DVI (VESA) 1×HDMI (CEA-861) 1×DP (VESA) 1×SDI (SDI/HD-SDI/3G-SDI)
Video System	PAL/NTSC
Composite Video Amplitude/Impendance	1V (p_p) / 75Ω
VGA Format	PC (VESA)		≤1920×1200_60Hz
VGA Amplitude/	R, G, B = 0.7 V (p_p) / 75Ω
DVI Format	PC (VESA)		≤1920×1200_60Hz
HDMI Format	PC (VESA)		≤3840×2160_30Hz
	HDMI1.4 (CEA-861)
DP Format	Display Port 1.2 (VESA)		≤3840×2160_30Hz
SDI Format	SMPTE 259M SMPTE 292M		480i_60Hz 576i_50Hz 720p, 1080i, 1080p
Input Connectors	Video: 4-Pin VGA VGA: 15-pin D_Sub (Female) DVI: 24+1 DVI_D SDI: BNC/ 75Ω HDMI: HDMI A Type DP: Display Port
Outputs
Number/Type		8×DVI
Preview Output	1×DVI (can be on any output card)
DVI Format	1920×1080_60Hz
Output Resolution	DVI: 24+1 DVI_D
Others
Control Port	RS232/USB/LAN
Input Voltage	100-240VAC 50/60Hz
Maximum Power Consumption	≤60W
Environment Temperature	0-45 ℃
Environment Humidity	15-85%
Dimension	483 (L) x 300 (W) x 89 (H) mm
Weight	G.W.: Kg, N.W.:Kg
